Linear Sound Ceiling Collection

The beauty of Plyboo® is now available for ceilings. Our new Reveal, Linear, and Sound Collections feature deep carving in and through our multilayered material that reveals mingling planes of color, texture, and optical movement.
  • Unique Appearance – Choose from a broad selection of patterns, colors, and textures. Our CNC-milling capability also makes custom designs practical.
  • Acoustical Control – Open area allows panels to be acoustically transparent or used with noise-reducing insulation. Our Linear Sound panels achieve a noise reduction coefficient (NRC) of 0.70.
  • Reduced Weight – Ribs and openings in Linear Sound panels result in styles that weigh as little as 2 lb/sf (10kg/m2).
  • Sustainability – FSC-certified, rapidly-renewable materials are used in a low-emitting, CARB Phase 2 and CA Section 01350 tested product.*
  • Light and Air Penetration – Openings in panels allow creative use beneath light sources and HVAC diffusers or returns in the plenum.
  • Curved and Custom Ceilings – Please contact the factory or your local Smith & Fong representative for more information.
The beauty of Plyboo® is now available for ceilings. Our new Reveal, Linear, and Sound Collections feature deep carving in and through our multilayered material that reveals mingling planes of color, texture, and optical movement.
  • Unique Appearance – Choose from a broad selection of patterns, colors, and textures. Our CNC-milling capability also makes custom designs practical.
  • Acoustical Control – Open area allows panels to be acoustically transparent or used with noise-reducing insulation. Our Linear Sound panels achieve a noise reduction coefficient (NRC) of 0.70.
  • Reduced Weight – Ribs and openings in Linear Sound panels result in styles that weigh as little as 2 lb/sf (10kg/m2).
  • Sustainability – FSC-certified, rapidly-renewable materials are used in a low-emitting, CARB Phase 2 and CA Section 01350 tested product.*
  • Light and Air Penetration – Openings in panels allow creative use beneath light sources and HVAC diffusers or returns in the plenum.
  • Curved and Custom Ceilings – Please contact the factory or your local Smith & Fong representative for more information.

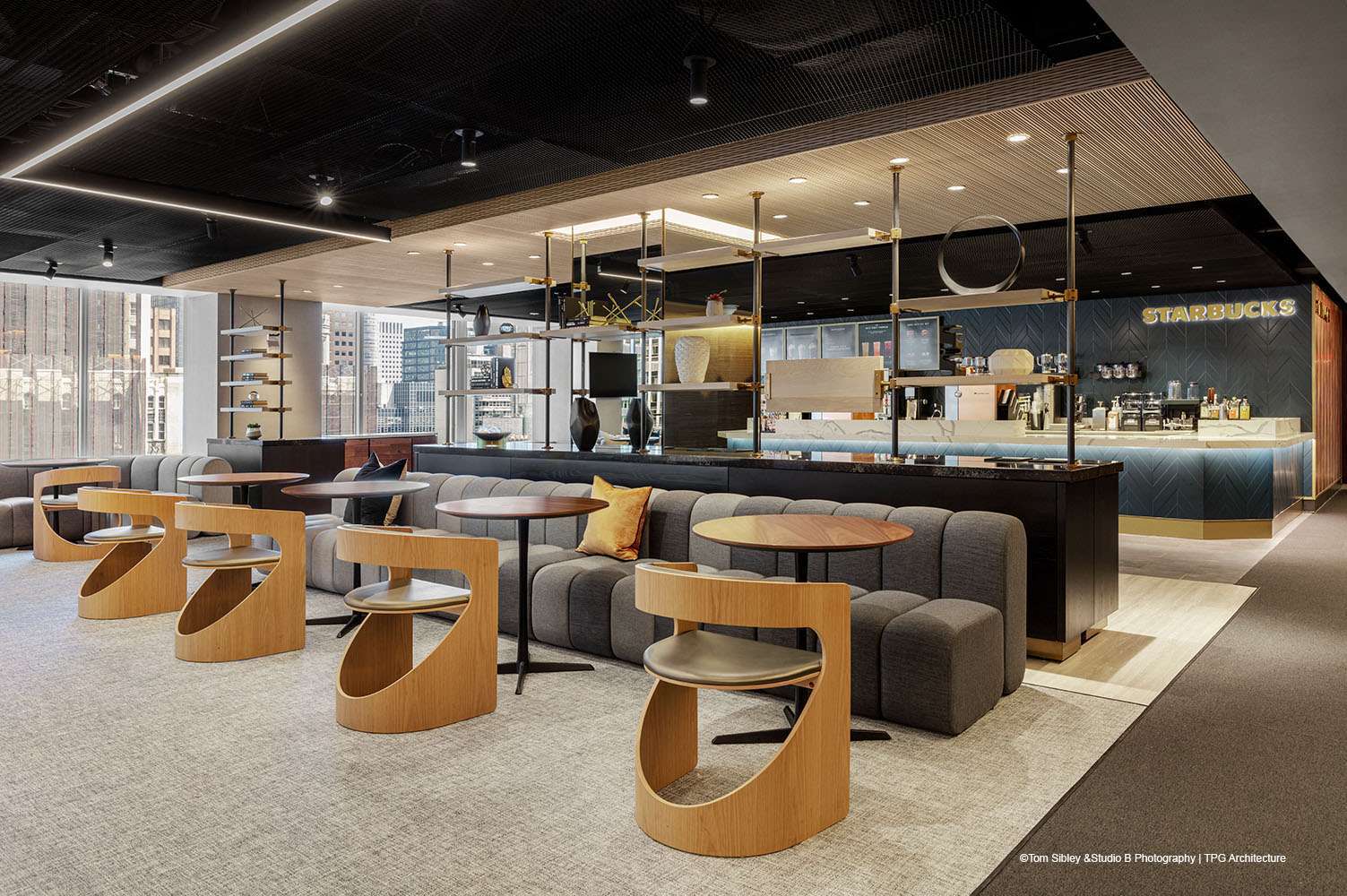

Linear sound ceiling collection helps control sound in bars and restaurants
Specifications
Linear Sound Ceiling Collection

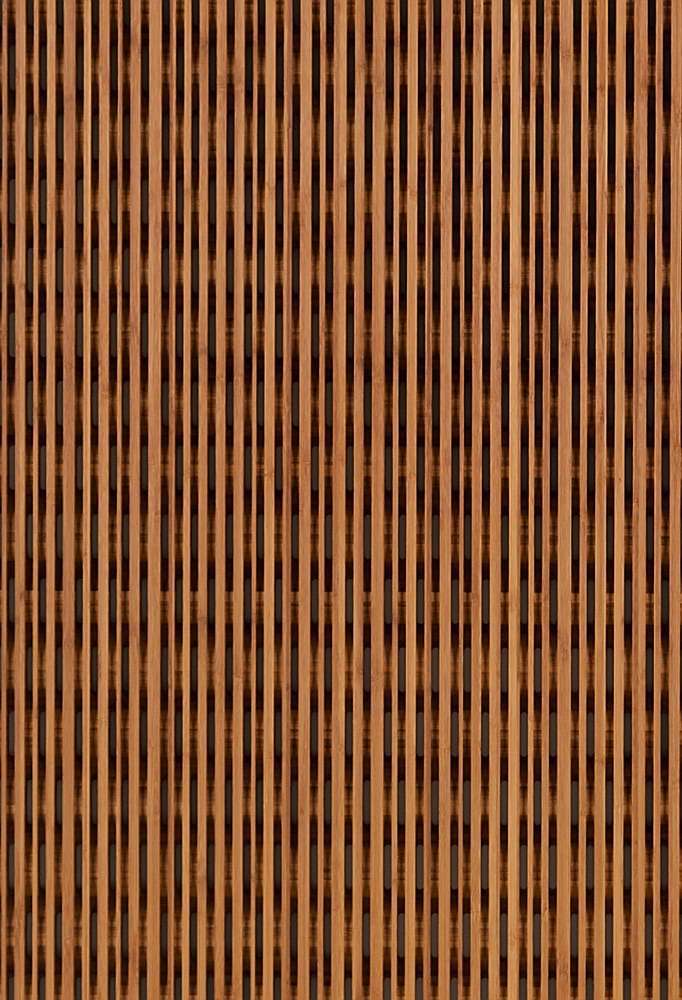

Linear Sound Panel Design LS11

Sound Absorption

QuietWall™ Technology (Test Result)

Core Composition

RealCore™

Color

Amber or Natural

Material

100% Bamboo

Size

3/4” x 473/4” x 953/4

Metric

19mm x 1213mm x 2432mm

Weight

80 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.70

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

Linear Sound Panel Design LS11

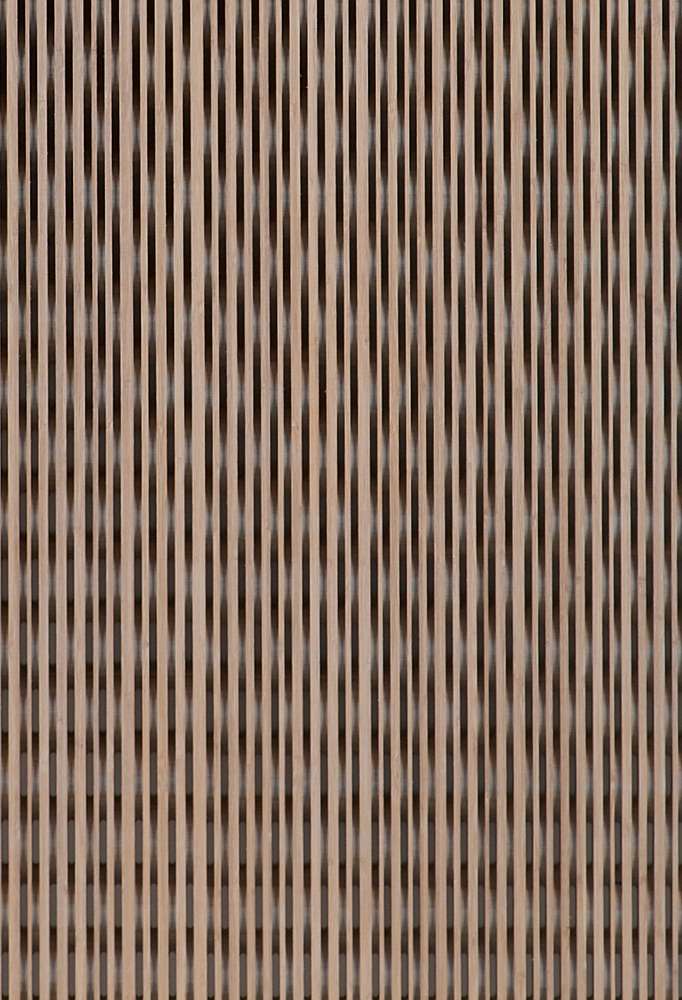

Linear Sound Panel Design LS11F

Sound Absorption

QuietWall™ Technology (Test Result)

Core Composition

RealCore™

Color

Fog

Material

100% Bamboo

Size

3/4” x 473/4” x 953/4

Metric

19mm x 1213mm x 2432mm

Weight

80 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.70

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

Linear Sound Panel Design LS11F

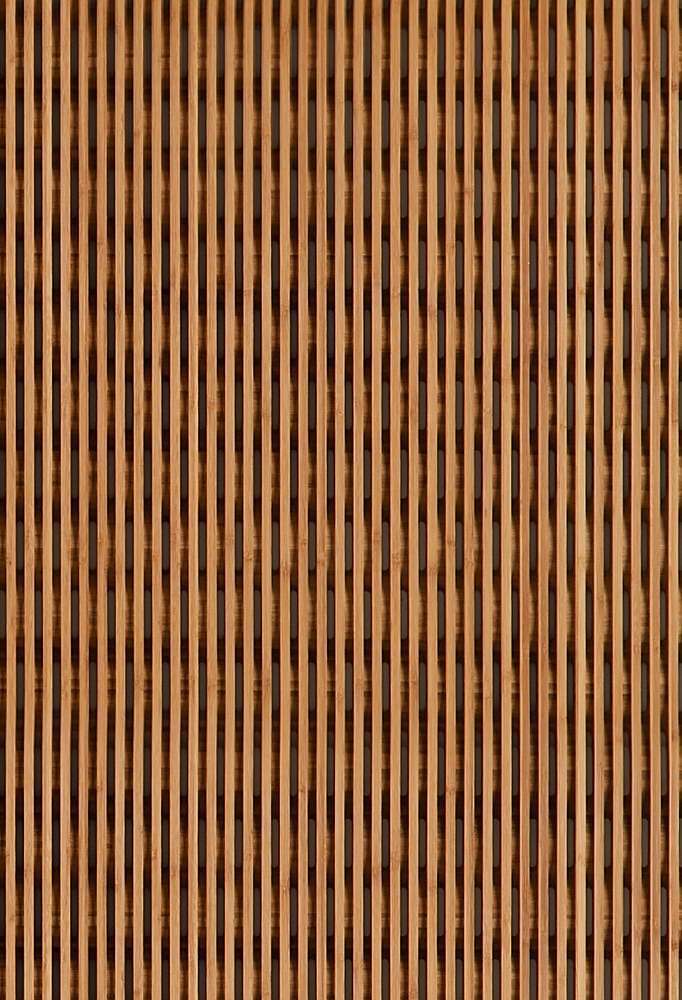

Linear Sound Panel Design LS12

Sound Absorption

QuietWall™ Technology (Test Result)

Core Composition

RealCore™

Color

Amber or Natural

Material

100% Bamboo

Size

3/4” x 473/4” x 953/4

Metric

19mm x 1213mm x 2432mm

Weight

80 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.70

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

Linear Sound Panel Design LS12

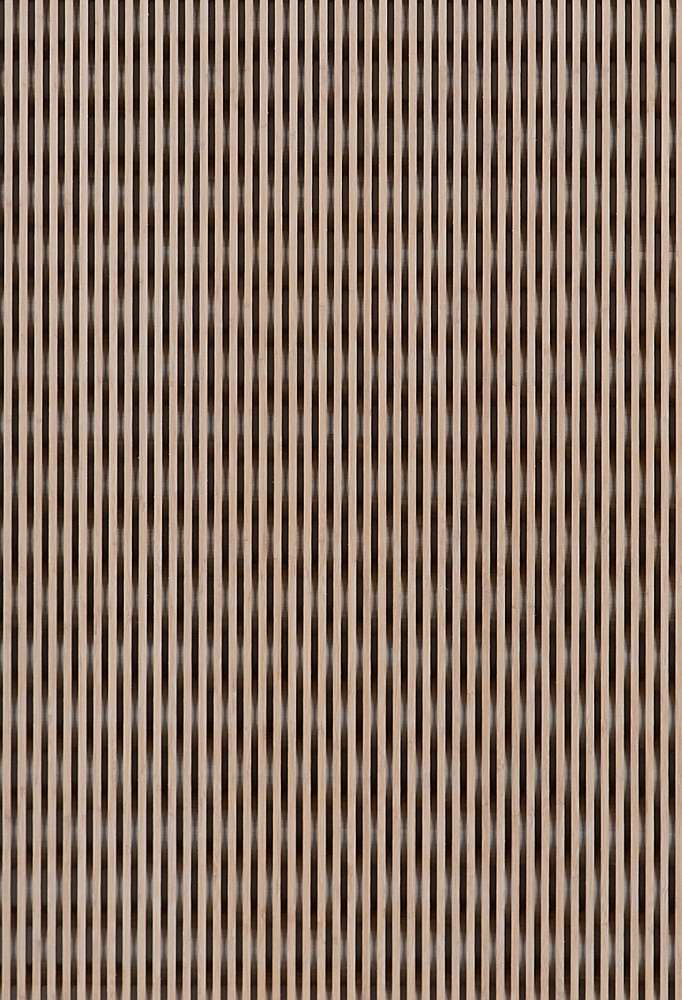

Linear Sound Panel Design LS12F

Sound Absorption

QuietWall™ Technology (Test Result)

Core Composition

RealCore™

Color

Fog

Material

100% Bamboo

Size

3/4” x 473/4” x 953/4

Metric

19mm x 1213mm x 2432mm

Weight

80 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.70

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

Linear Sound Panel Design LS12F

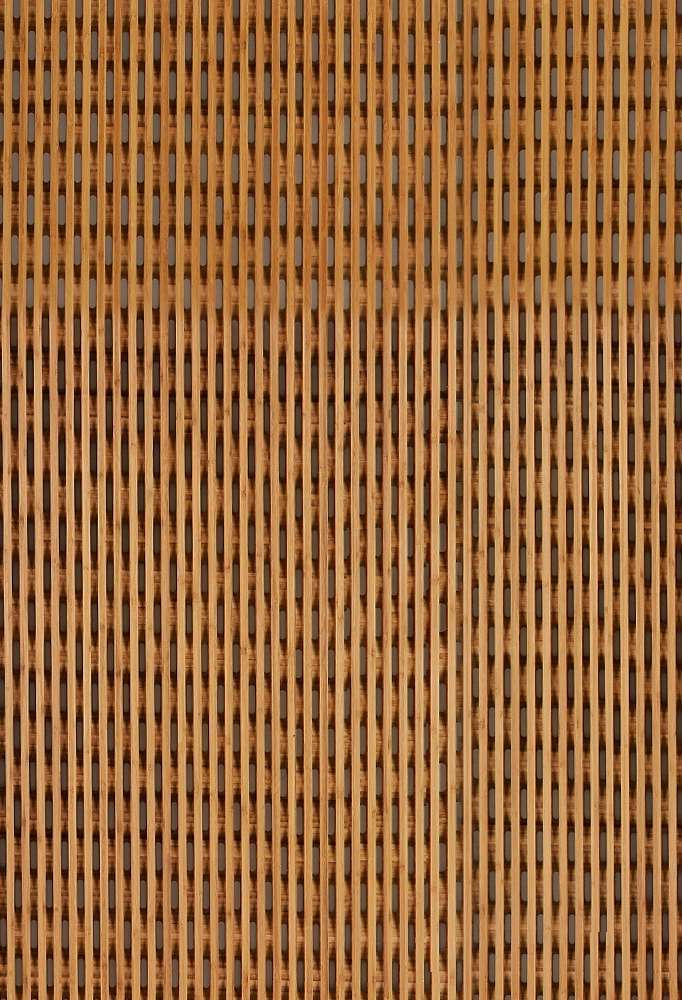

Linear Sound Panel Design LS13

Sound Absorption

QuietWall™ Technology (Test Result)

Core Composition

RealCore™

Color

Amber or Natural

Material

100% Bamboo

Size

3/4” x 473/4” x 953/4

Metric

19mm x 1213mm x 2432mm

Weight

80 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.70

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

Linear Sound Panel Design LS13

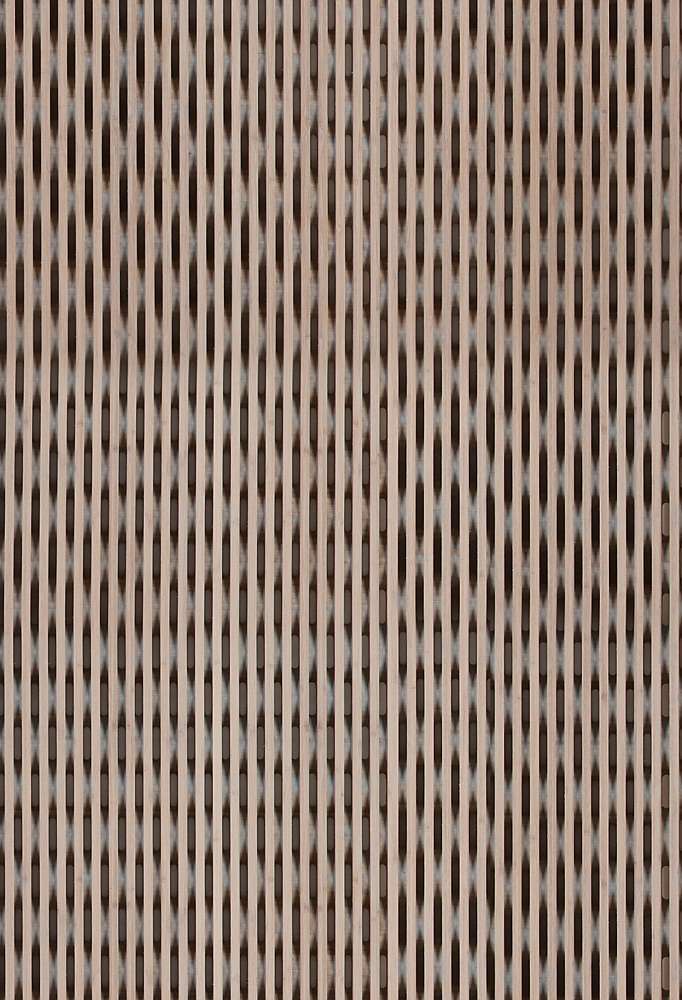

Linear Sound Panel Design LS13F

Sound Absorption

QuietWall™ Technology (Test Result)

Core Composition

RealCore™

Color

Fog

Material

100% Bamboo

Size

3/4” x 473/4” x 953/4

Metric

19mm x 1213mm x 2432mm

Weight

80 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.70

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

Linear Sound Panel Design LS13F

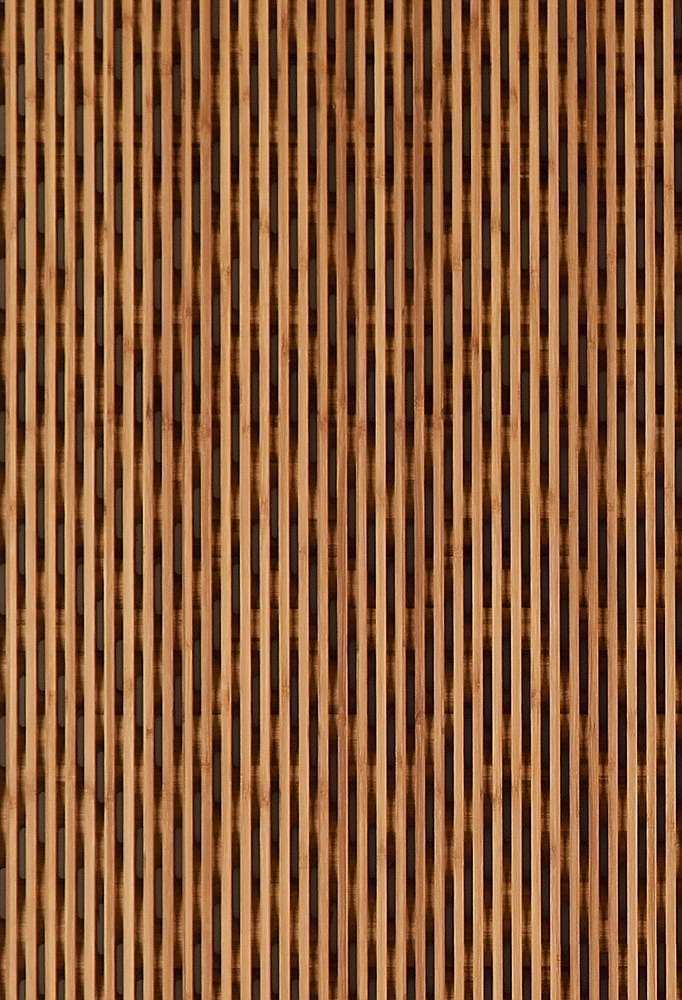

Linear Sound Panel Design LS14

Sound Absorption

QuietWall™ Technology (Test Result)

Core Composition

RealCore™

Color

Amber or Natural

Material

100% Bamboo

Size

3/4” x 473/4” x 953/4

Metric

19mm x 1213mm x 2432mm

Weight

80 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.70

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

Linear Sound Panel Design LS14

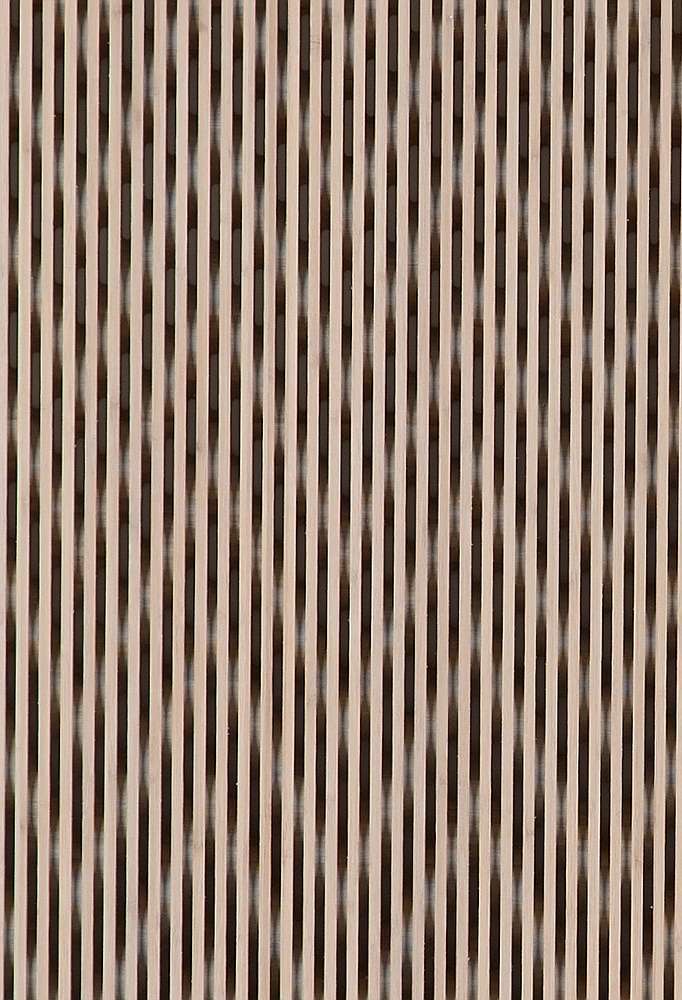

Linear Sound Panel Design LS14F

Sound Absorption

QuietWall™ Technology (Test Result)

Core Composition

RealCore™

Color

Fog

Material

100% Bamboo

Size

3/4” x 473/4” x 953/4

Metric

19mm x 1213mm x 2432mm

Weight

80 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.70

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

Linear Sound Panel Design LS14F

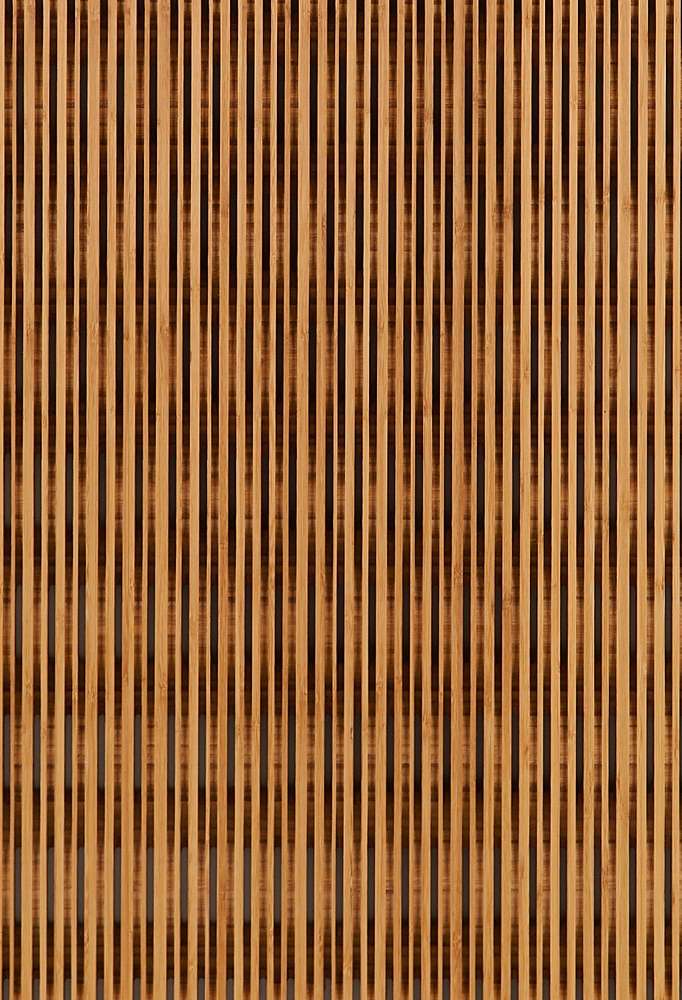

Linear Sound Panel Design LS15

Sound Absorption

QuietWall™ Technology (Test Result)

Core Composition

RealCore™

Color

Amber or Natural

Material

100% Bamboo

Size

3/4” x 473/4” x 953/4

Metric

19mm x 1213mm x 2432mm

Weight

80 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.70

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

Linear Sound Panel Design LS15

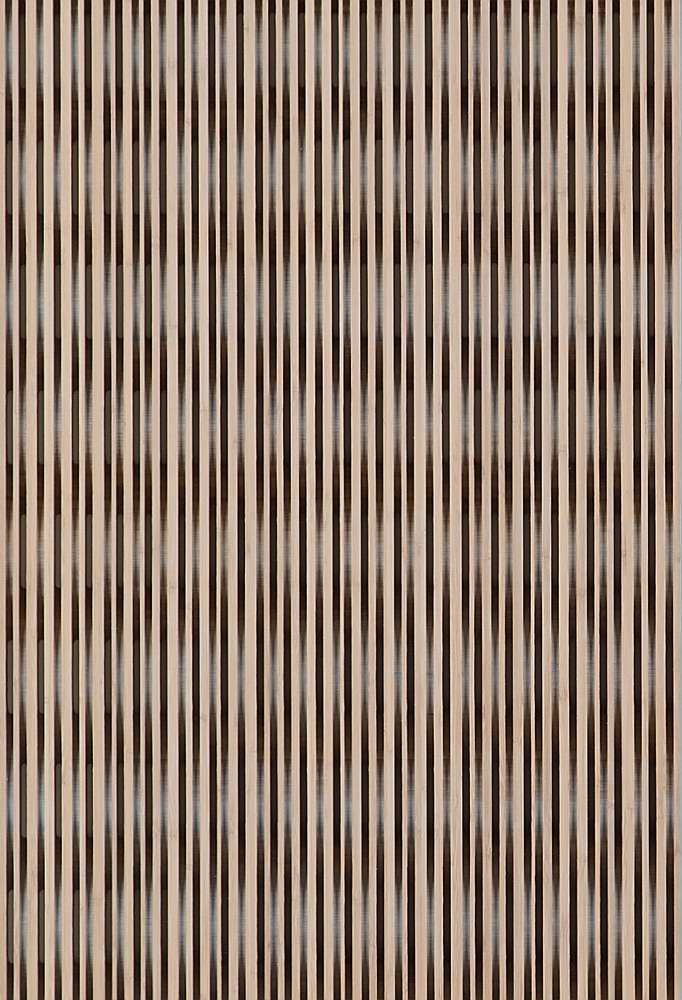

Linear Sound Panel Design LS15F

Sound Absorption

QuietWall™ Technology (Test Result)

Core Composition

RealCore™

Color

Fog

Material

100% Bamboo

Size

3/4” x 473/4” x 953/4

Metric

19mm x 1213mm x 2432mm

Weight

80 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.70

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

Linear Sound Panel Design LS15F

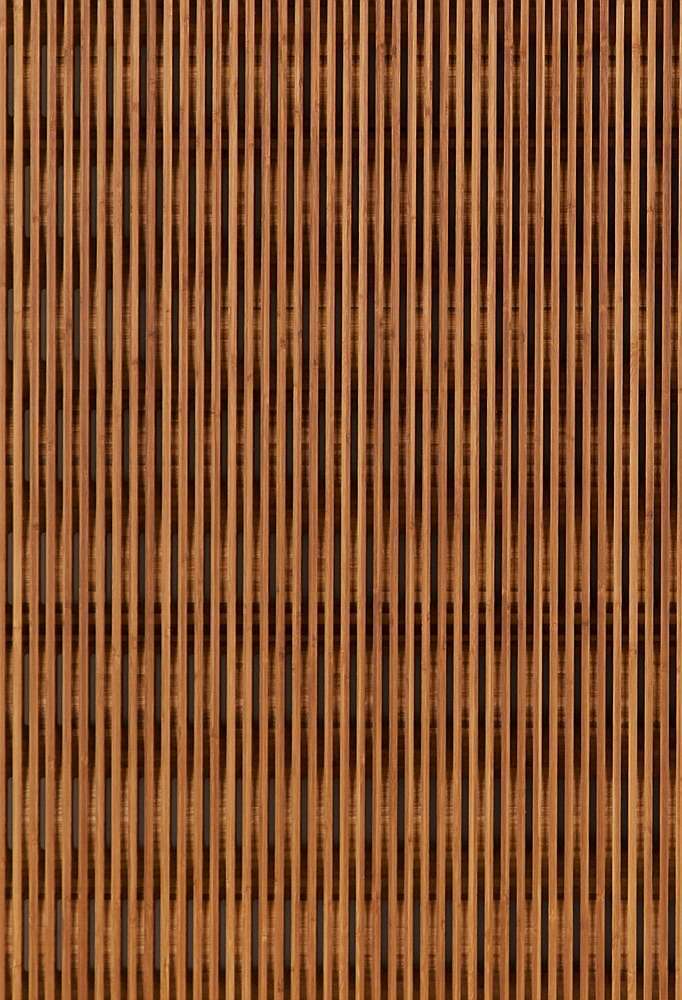

Linear Sound Panel Design LS16

Sound Absorption

QuietWall™ Technology (Test Result)

Core Composition

RealCore™

Color

Amber or Natural

Material

100% Bamboo

Size

3/4” x 473/4” x 953/4

Metric

19mm x 1213mm x 2432mm

Weight

80 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.70

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

Linear Sound Panel Design LS16

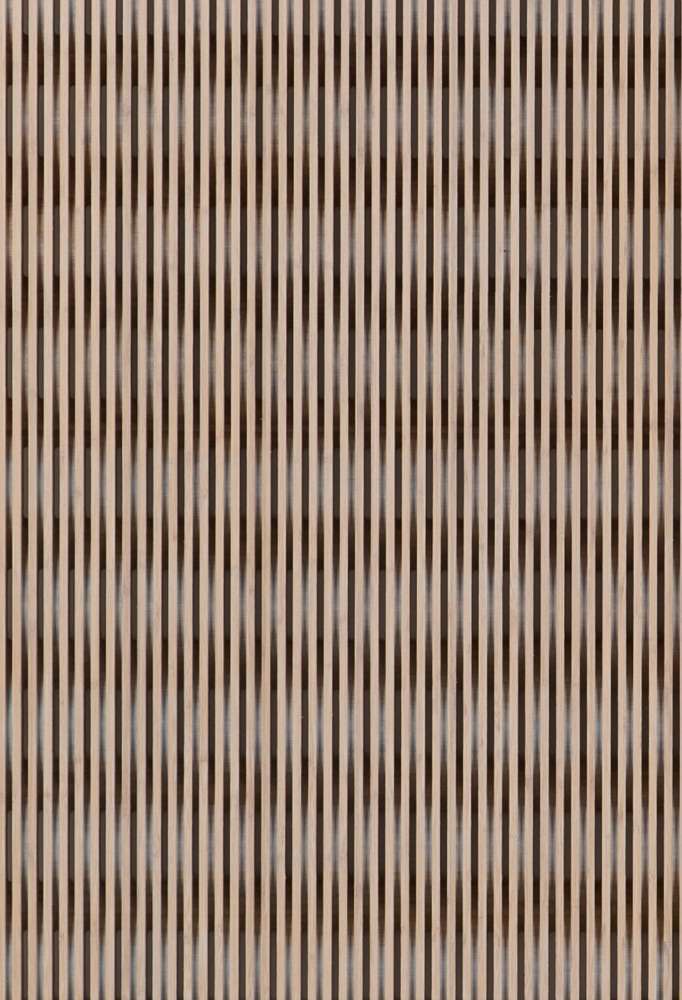

Linear Sound Panel Design LS16F

Sound Absorption

QuietWall™ Technology (Test Result)

Core Composition

RealCore™

Color

Fog

Material

100% Bamboo

Size

3/4” x 473/4” x 953/4

Metric

19mm x 1213mm x 2432mm

Weight

80 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.70

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

Linear Sound Panel Design LS16F

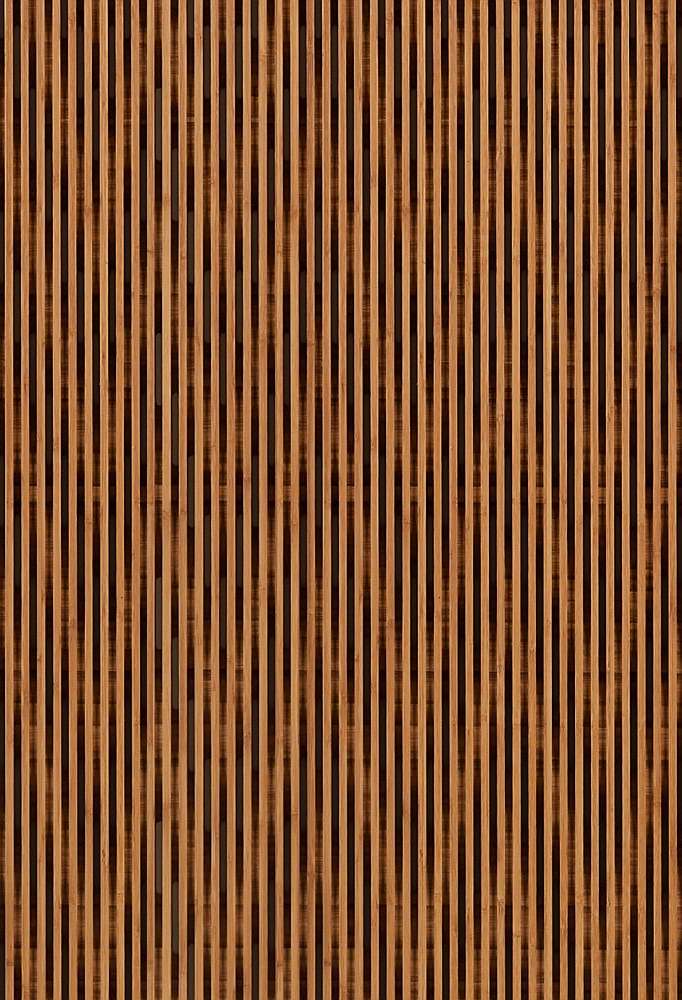

Linear Sound Panel Design LS17

Sound Absorption

QuietWall™ Technology (Test Result)

Core Composition

RealCore™

Color

Amber or Natural

Material

100% Bamboo

Size

3/4” x 473/4” x 953/4

Metric

19mm x 1213mm x 2432mm

Weight

80 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.70

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

Linear Sound Panel Design LS17
Linear Sound Panel Design LS17F

Sound Absorption

QuietWall™ Technology (Test Result)

Core Composition

RealCore™

Color

Fog

Material

100% Bamboo

Size

3/4” x 473/4” x 953/4

Metric

19mm x 1213mm x 2432mm

Weight

80 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.70

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

Ceiling Integration

Plyboo Ceilings are compatible with a wide variety of ceiling types and conditions:

  • Screw Installation: Install directly to substrate, mount on furring, or screw to bottom flange of suspended metal ceiling grid. Self-drilling screws with small heads fit between ribs of Linear and Linear Sound panels to semi-conceal fasteners without countersinking.
  • Direct Hanging: Suspension wires can be semi-concealed in the ribs of Linear Sound panels allowing installation of panels without a metal ceiling grid.
  • Exposed, Semi-Exposed, and Concealed Metal Ceiling Grid: Use square edges for lay-in installation in exposed grid, or routed edges for lift-and-shift installation with narrow reveals or butt joints.
  • C-Clips are attached to upper side of panels and hook over ceiling grids or other supports.
  • Plyboo panels are available in sizes up to 4 x 10 ft (1.2 x 3m), ½ or ¾ inch (13mm or 19mm) thicknesses, and with Class B or Class C surface burning characteristics; check with factory or local representative for availability. Plyboo ceiling panels are more durable than conventional acoustic ceiling products, easy to maintain, and complement Plyboo used for wall panels, furniture, and flooring.

Download Ceiling Catalog

Ceiling Integration
