Ceiling Integration

Sound Ceiling Collection

Acoustical Bamboo Wall Panels The beauty of Plyboo® is now available for ceilings. Our new Reveal, Linear, and Sound Collections feature deep carving in and through our multilayered material that reveals mingling planes of color, texture, and optical movement.

Unique Appearance – Choose from a broad selection of patterns, colors, and textures. Our CNC-milling capability also makes custom designs practical.
Acoustical Control – Open area allows panels to be acoustically transparent or used with noise-reducing insulation. Our Linear Sound panels achieve a noise reduction coefficient (NRC) of 0.70.
Reduced Weight – Ribs and openings in Linear Sound panels result in styles that weigh as little as 2 lb/sf (10kg/m2).
Sustainability – FSC-certified, rapidly-renewable materials are used in a low-emitting, CARB Phase 2 and CA Section 01350 tested product.*
Light and Air Penetration – Openings in panels allow creative use beneath light sources and HVAC diffusers or returns in the plenum.
Curved and Custom Ceilings – Please contact the factory or your local Smith & Fong representative for more information.

Unique Appearance – Choose from a broad selection of patterns, colors, and textures. Our CNC-milling capability also makes custom designs practical.
Acoustical Control – Open area allows panels to be acoustically transparent or used with noise-reducing insulation. Our Linear Sound panels achieve a noise reduction coefficient (NRC) of 0.70.
Reduced Weight – Ribs and openings in Linear Sound panels result in styles that weigh as little as 2 lb/sf (10kg/m2).
Sustainability – FSC-certified, rapidly-renewable materials are used in a low-emitting, CARB Phase 2 and CA Section 01350 tested product.*
Light and Air Penetration – Openings in panels allow creative use beneath light sources and HVAC diffusers or returns in the plenum.
Curved and Custom Ceilings – Please contact the factory or your local Smith & Fong representative for more information.

Order Samples Request a Quote

Plyboo Sound Ceiling panels to add acoustica; control to open public spaces.

Specifications

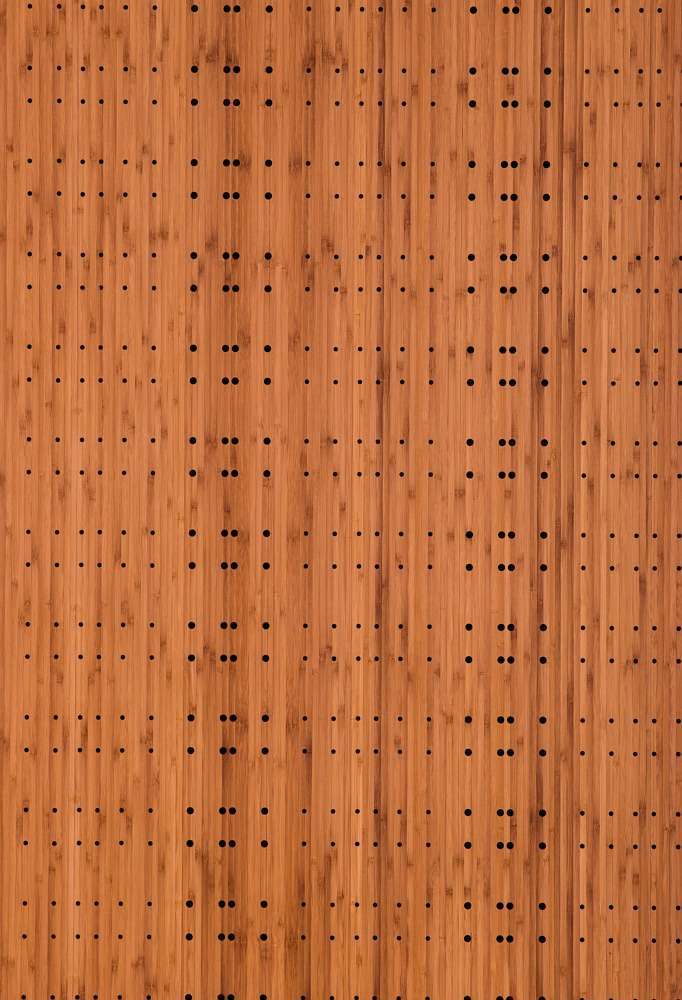

PlybooSound Panel Design A1

Specifications

CSI 3-part specification – Plyboo Sound Collection
Plyboo Ceiling Information

Sound Absorption

QuietWall™ Technology

Core Composition

RealCore™

Color

Amber or Natural

Material

100% Bamboo

Size

3/4″ x 473/4″ x 953/4″

Metric

19mm x 1213mm x 2432mm

Weight

90 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.50

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

BP-V4896A/A1

Carb Phase II Compatible

Installation Guide

View Environmental Product Declaration & Life-Cycle Analysis

Warranty

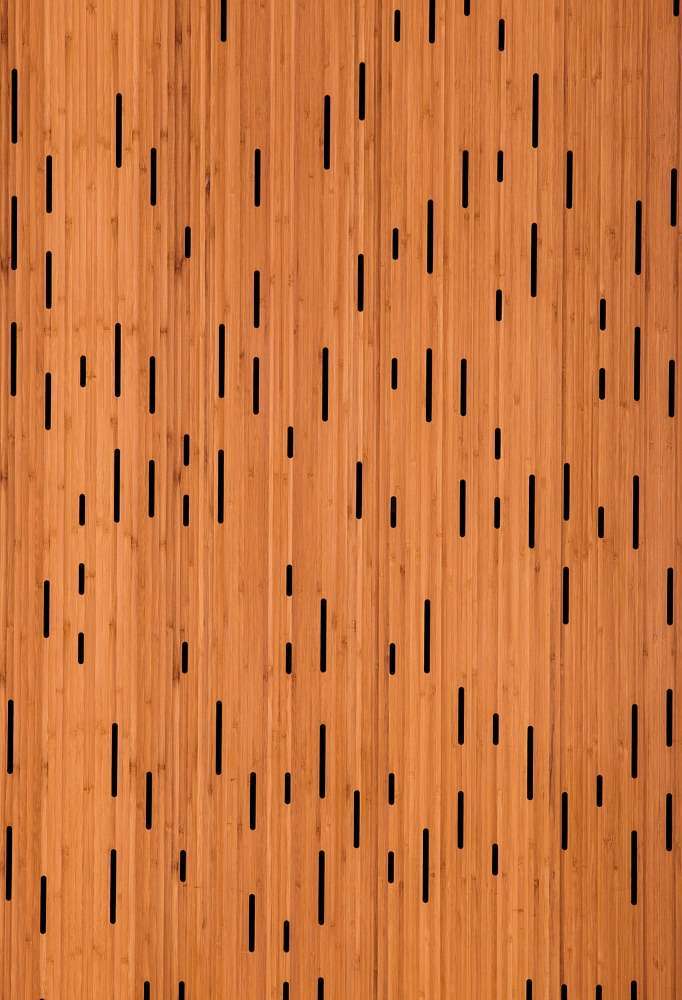

PlybooSound Panel Design A2

Specifications

CSI 3-part specification – Plyboo Sound Collection
Plyboo Ceiling Information

Sound Absorption

QuietWall™ Technology

Core Composition

RealCore™

Color

Amber or Natural

Material

100% Bamboo

Size

3/4″ x 473/4″ x 953/4″

Metric

19mm x 1213mm x 2432mm

Weight

90 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.50

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

BP-V4896A/A2

Carb Phase II Compatible

Installation Guide

View Environmental Product Declaration & Life-Cycle Analysis

Warranty

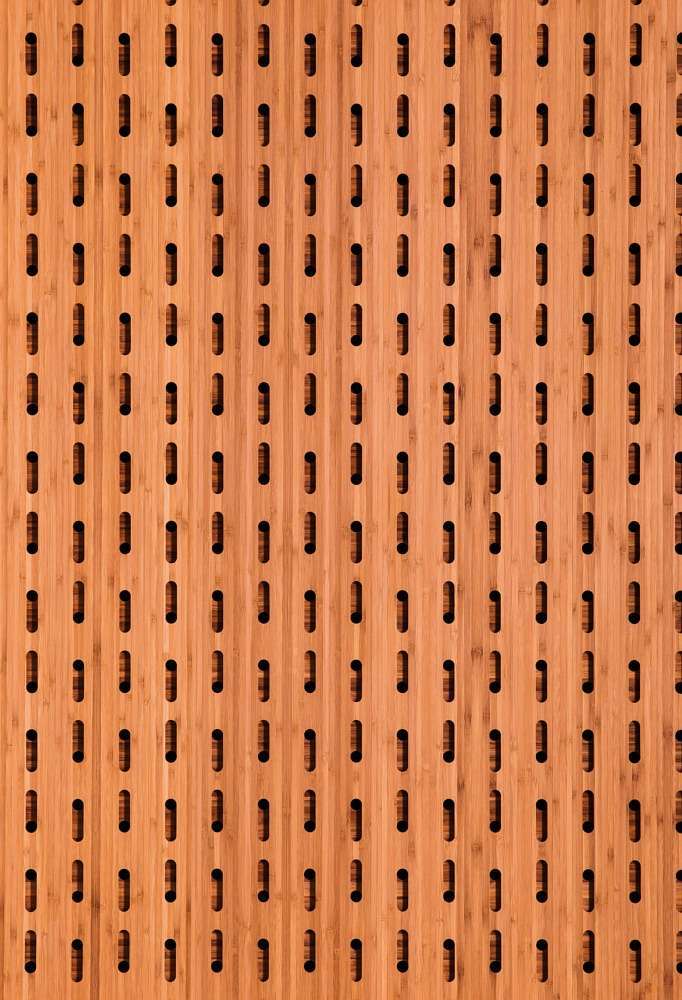

PlybooSound Panel Design A3

Specifications

CSI 3-part specification – Plyboo Sound Collection
Plyboo Ceiling Information

Sound Absorption

QuietWall™ Technology (Test Results)

Core Composition

RealCore™

Color

Amber or Natural

Material

100% Bamboo

Size

3/4″ x 473/4″ x 953/4″

Metric

19mm x 1213mm x 2432mm

Weight

90 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.50

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

BP-V4896A/A3

Carb Phase II Compatible

Installation Guide

View Environmental Product Declaration & Life-Cycle Analysis

Warranty

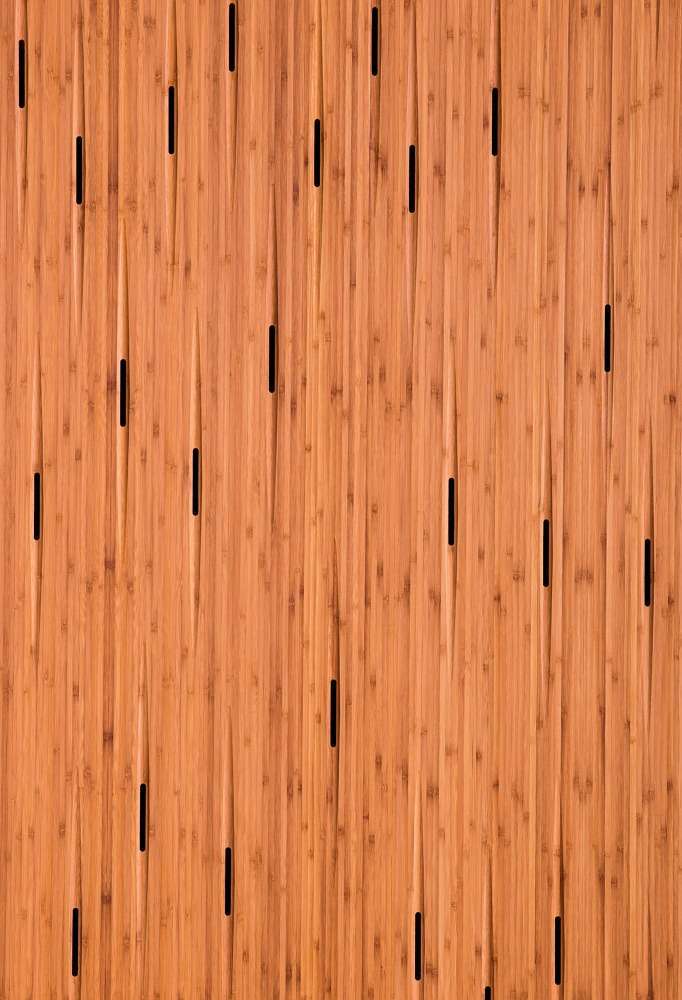

PlybooSound Panel Design A4

Specifications

CSI 3-part specification – Plyboo Sound Collection
Plyboo Ceiling Information

Sound Absorption

QuietWall™ Technology

Core Composition

RealCore™

Color

Amber or Natural

Material

100% Bamboo

Size

3/4″ x 473/4″ x 953/4″

Metric

19mm x 1213mm x 2432mm

Weight

90 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.50

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

BP-V4896A/A4

Carb Phase II Compatible

Installation Guide

View Environmental Product Declaration & Life-Cycle Analysis

Warranty

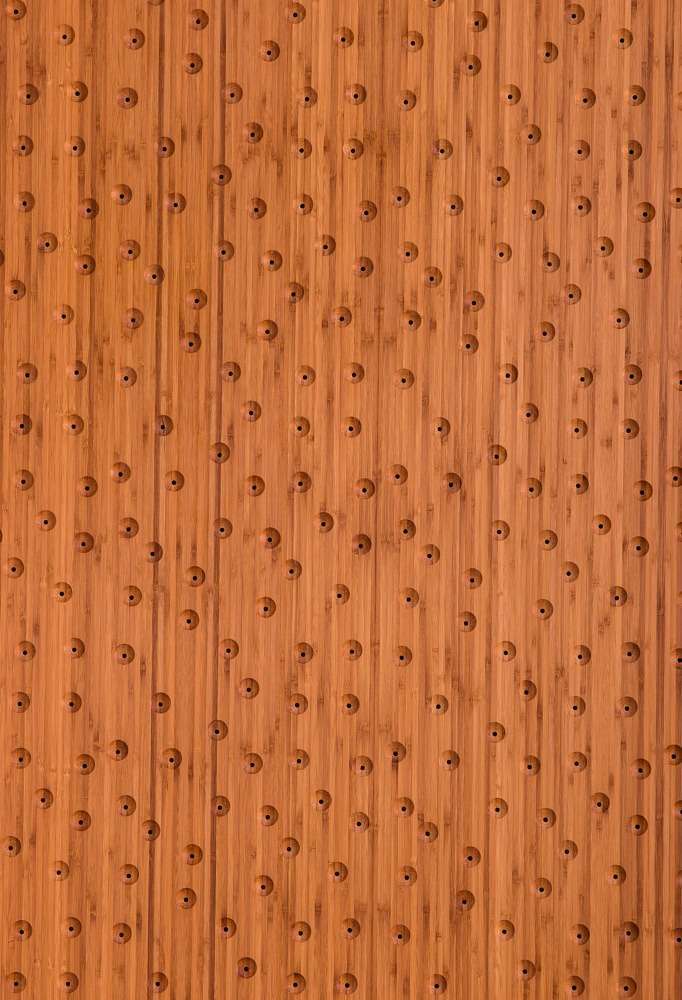

PlybooSound Panel Design A5

Specifications

CSI 3-part specification – Plyboo Sound Collection
Plyboo Ceiling Information

Sound Absorption

QuietWall™ Technology

Core Composition

RealCore™

Color

Amber or Natural

Material

100% Bamboo

Size

3/4″ x 473/4″ x 953/4″

Metric

19mm x 1213mm x 2432mm

Weight

90 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.50

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

BP-V4896A/A5

Carb Phase II Compatible

Installation Guide

View Environmental Product Declaration & Life-Cycle Analysis

Warranty

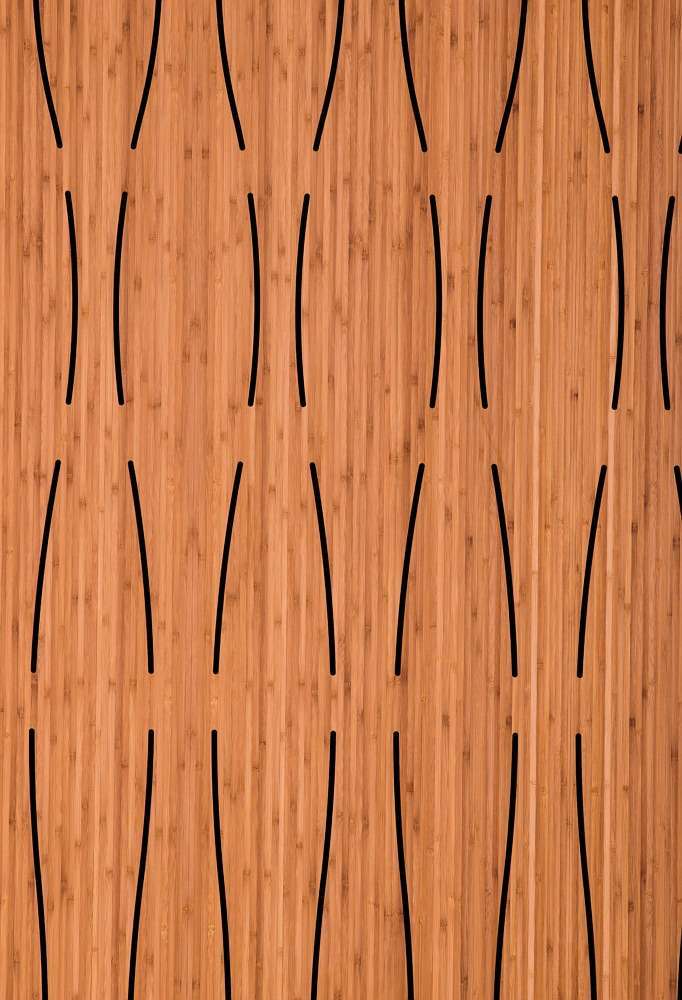

PlybooSound Panel Design A6

Specifications

CSI 3-part specification – Plyboo Sound Collection
Plyboo Ceiling Information

Sound Absorption

QuietWall™ Technology (Test Results)

Core Composition

RealCore™

Color

Amber or Natural

Material

100% Bamboo

Size

3/4″ x 473/4″ x 953/4″

Metric

19mm x 1213mm x 2432mm

Weight

90 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.50

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

BP-V4896A/A6

Carb Phase II Compatible

Installation Guide

View Environmental Product Declaration & Life-Cycle Analysis

Warranty

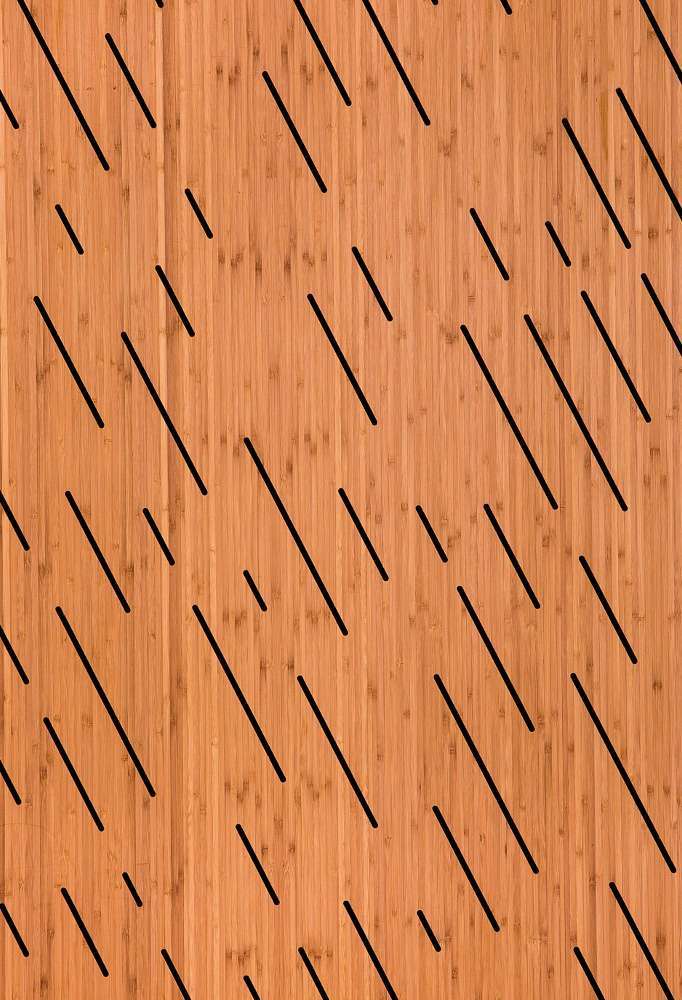

PlybooSound Panel Design A7

Specifications

CSI 3-part specification – Plyboo Sound Collection
Plyboo Ceiling Information

Sound Absorption

QuietWall™ Technology

Core Composition

RealCore™

Color

Amber or Natural

Material

100% Bamboo

Size

3/4″ x 473/4″ x 953/4″

Metric

19mm x 1213mm x 2432mm

Weight

90 lbs

Surface Texture

Prefinished or Unfinished

Fire Resistance Classification

Class C (Class B available)

Noise Reduction Coefficient (NRC)

avg. 0.50

Sound Transmission Class (STC)

avg. 0.00

Emission Testing – CA Section 01350 Protocol

No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria

BP-V4896A/A7

Carb Phase II Compatible

Installation Guide

View Environmental Product Declaration & Life-Cycle Analysis

Warranty

Ceiling Integration

Download Ceiling Catalog

Ceiling Integration
